Description
Specifications
Product features
Connectors External speaker(s)
Number of channels 1
Number of speaker outputs 2
Amp modellin gno
Category Guitar
Effects loop yes
Weight 20 – 24.9 kg
Speaker output impedance 16 ohms, 8 ohms, 4 ohms
Built-in tuner no
Built-in effects none
Colour black
Power attenuator no
Type of power amp tube EL34
Amplifier type tube
Power in Watts 76 – 100 Watts
Weight and dimensions including packaging
Weight (incl. packaging)24.1 kg
Dimensions (incl. packaging)87.0 x 83.0 x 38.0 cm
Product specifications

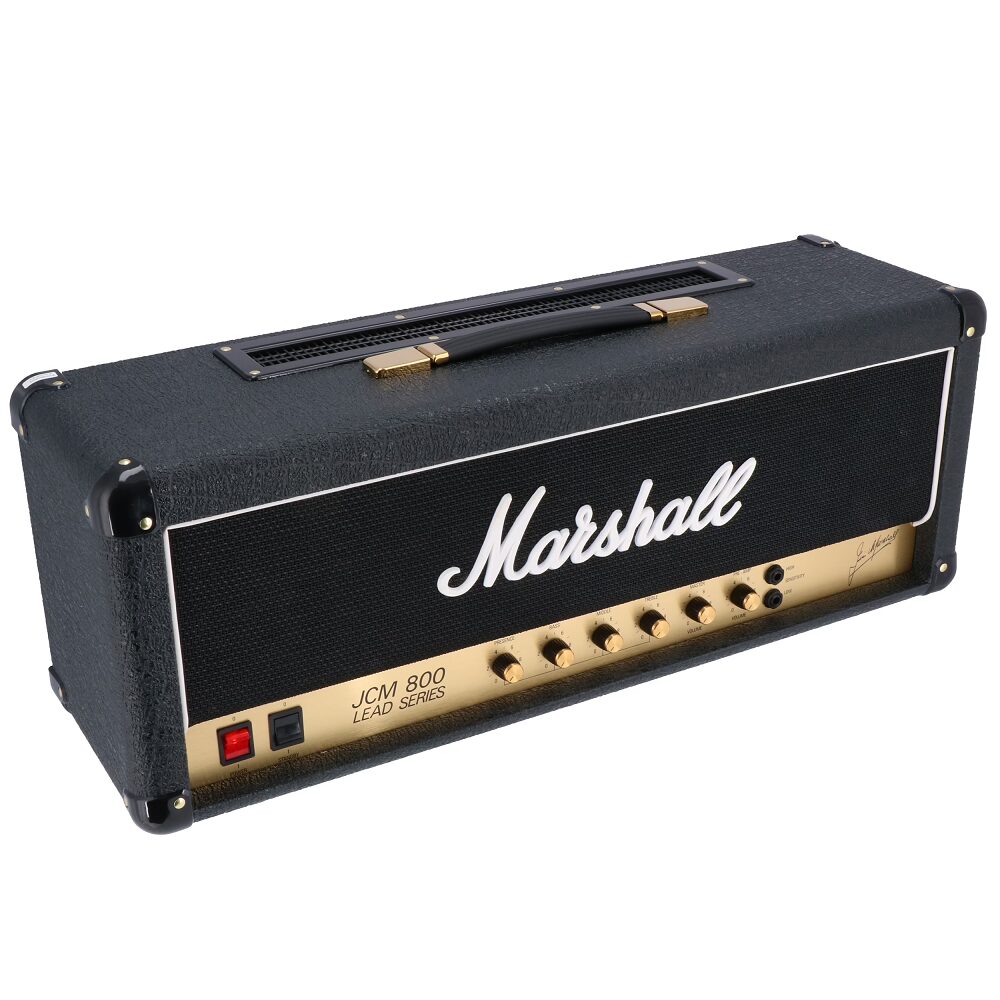

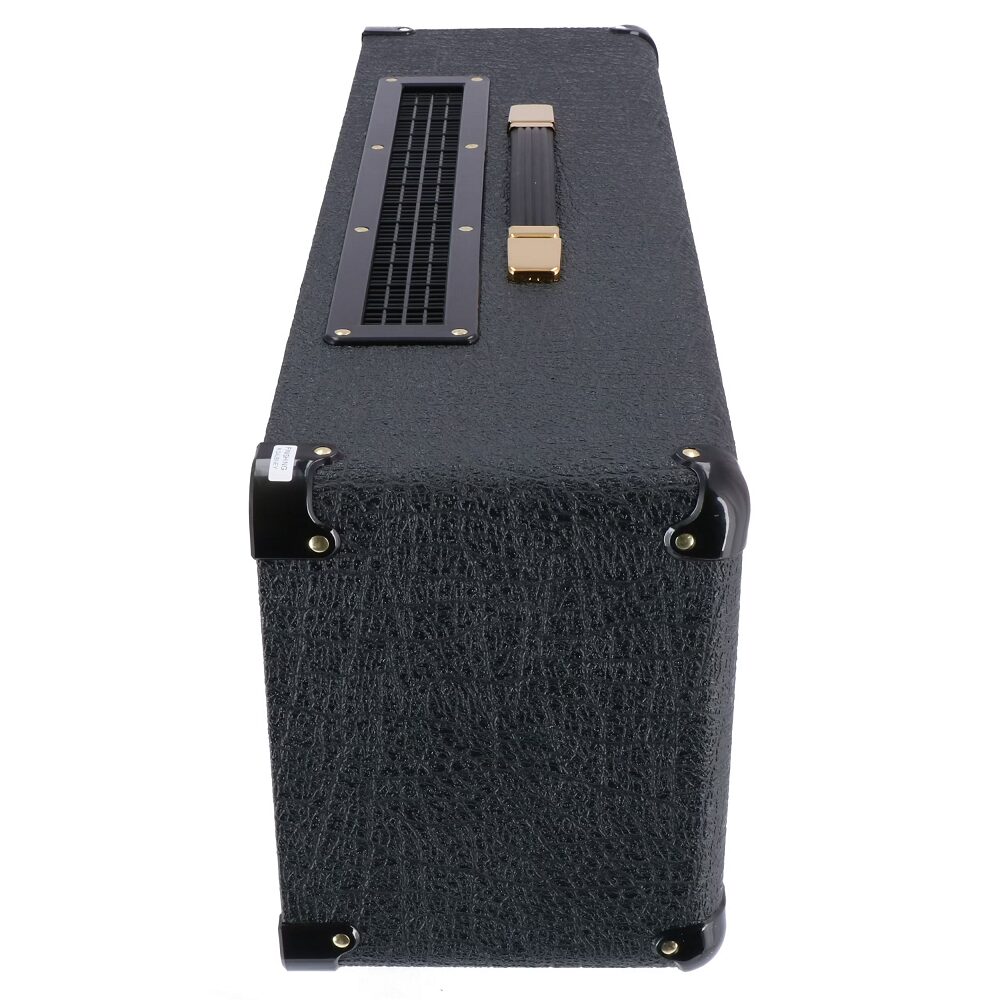

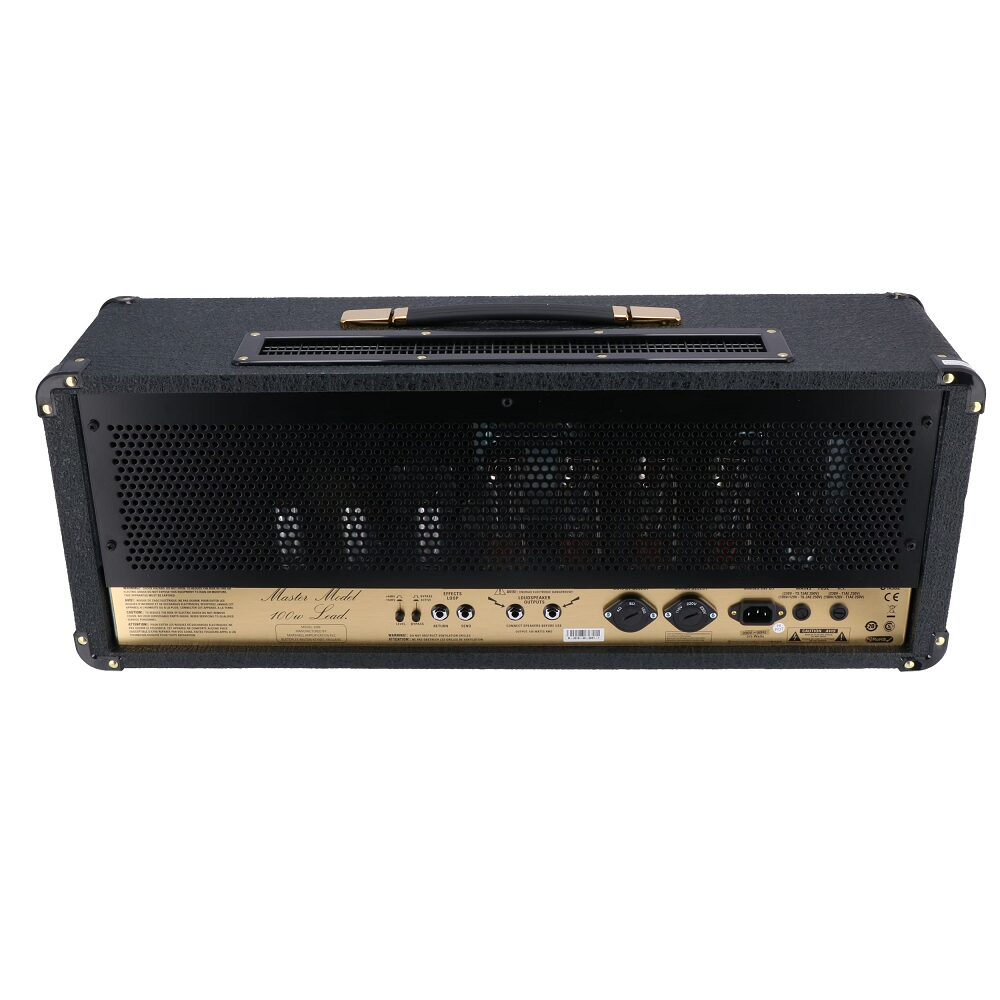

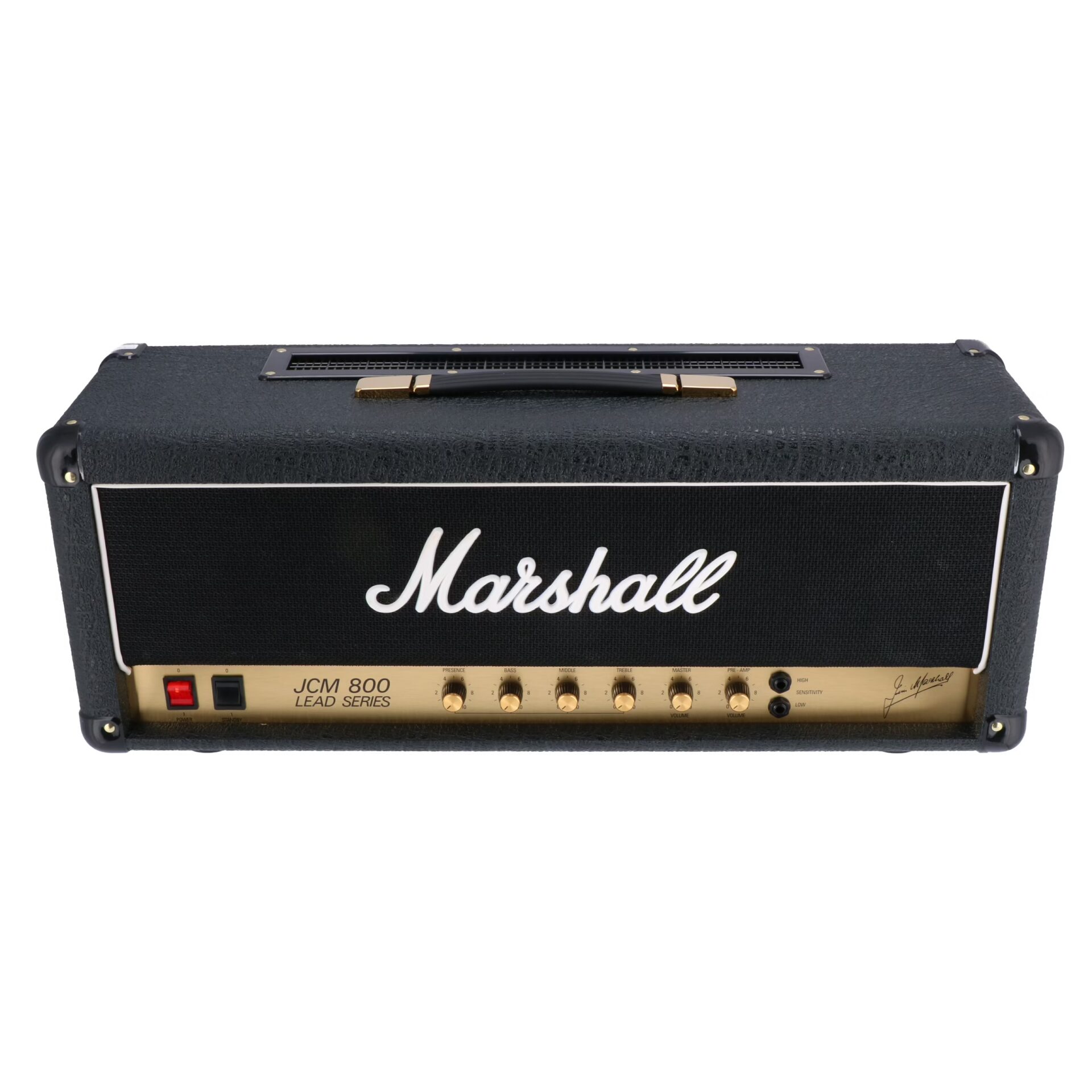

Marshall guitar amplifier head
based on JCM800 2203
type of amplifier: tube
preamp tubes: 2x ECC83, 1x ECC83 (phase splitter)
power amp tubes: 4x EL34
power output: 100 W
switches:
power
standby
level
bypass
output select (4 Ohm, 8 Ohm, 16 Ohm)
mains select (110V, 220V, 230V)
controls:
presence
bass
middle
treble
master
pre-amp
connectors:
6.35 mm mono jack input high sensitivity
6.35 mm mono jack input low sensitivity
2x 6.35 mm mono jack speaker outputs
mono jack send
mono jack return
dimensions: 74 x 31.5 x 21 cm
weight: 20.5 kg
included: power cable, speaker cable
