dB Technologies DVA K5 3-way active line array module, 500W

-23%

dB Technologies DVA K5 3-way active line array module, 500W

Name: dB Technologies DVA K5 3-way active line array module, 500W
SKU: 16318
Availability: InStock

Original price was: €1,550.00.Current price is: €1,190.00.

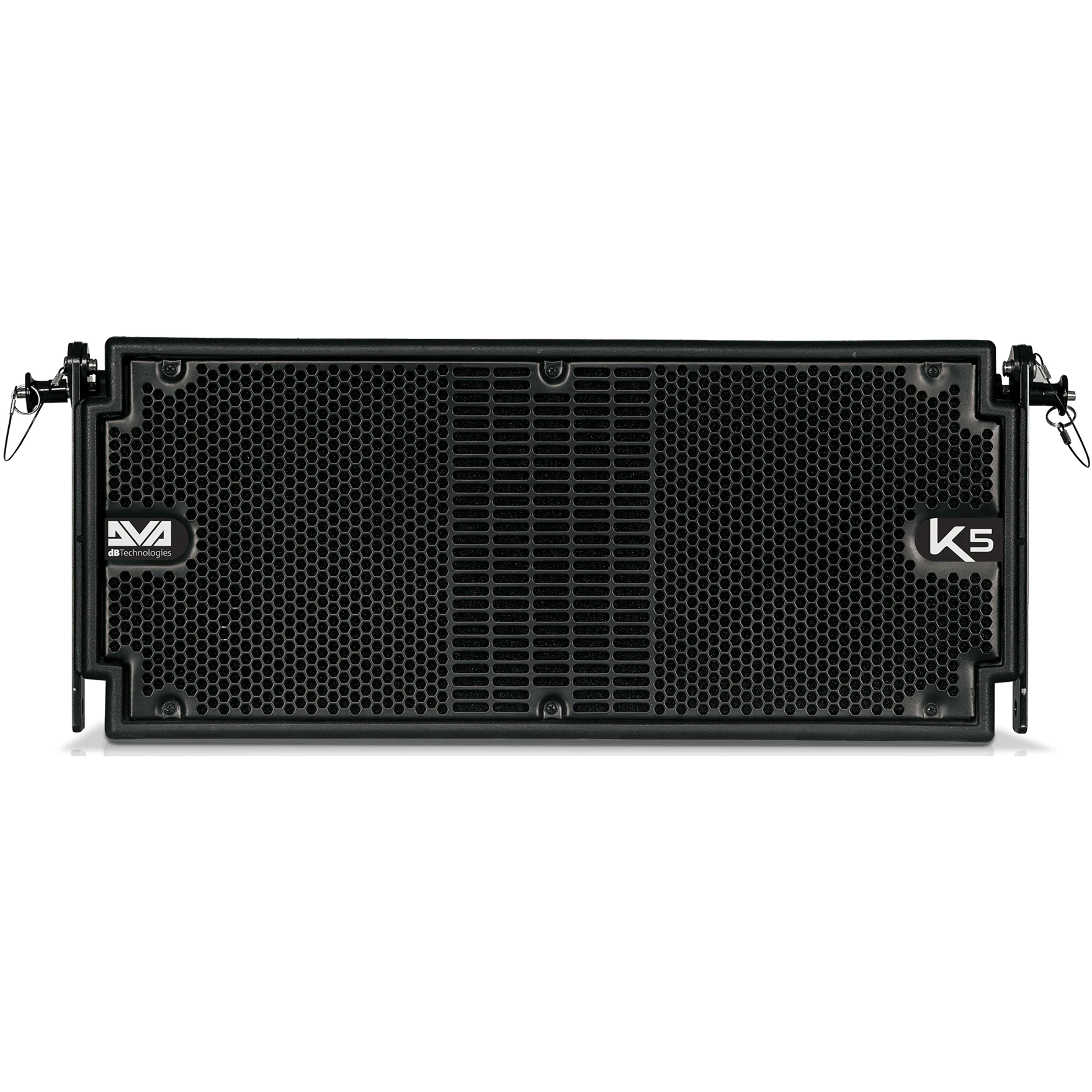

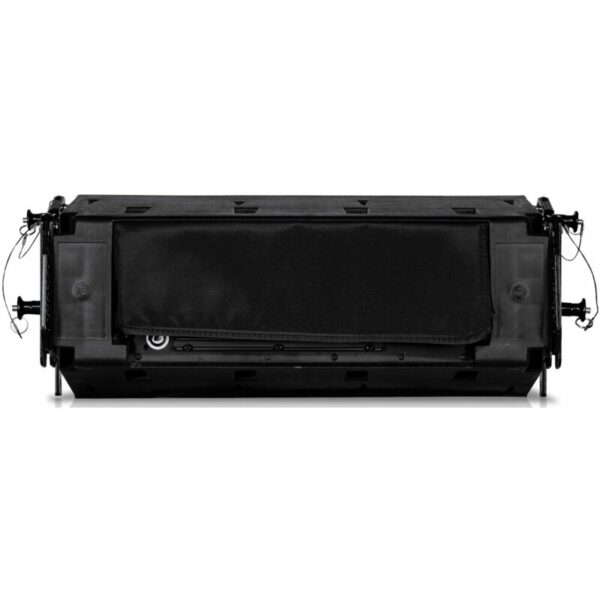

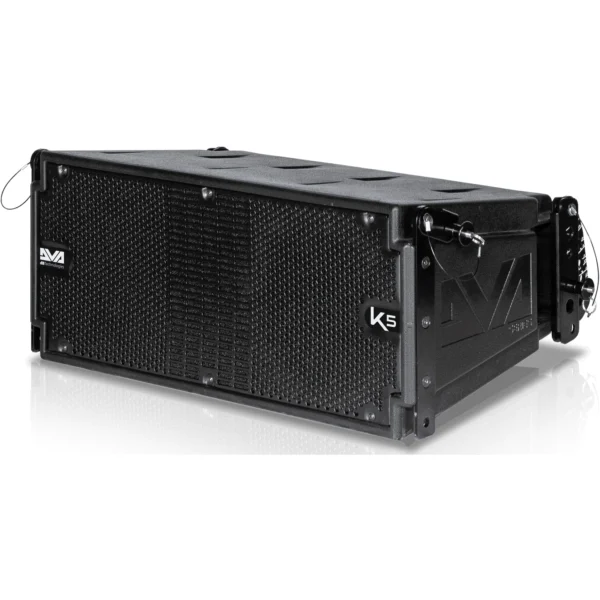

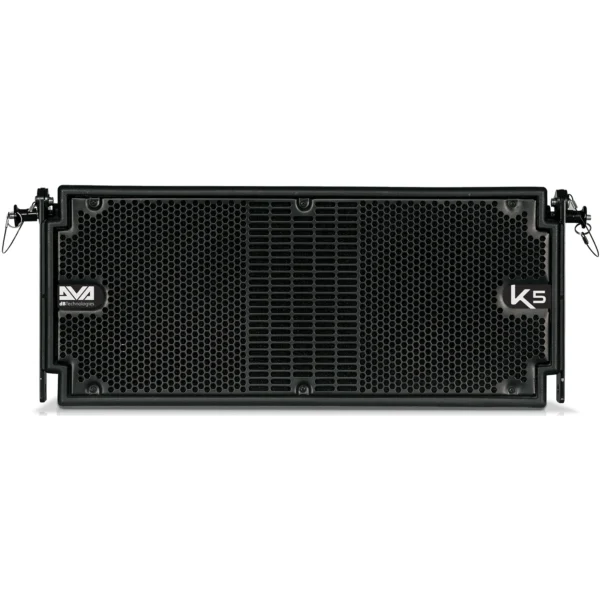

The DVA K5 by dB Technologies is an active 3-way line-array module with 1x 8-inch LF driver, 1x 6.5-inch MF driver and 2x 1-inch HF driver. The total RMS output is 500 watts. Because this line array is equipped with a DSP processor, you can fine-tune the sound it produces to perfection. All the speaker components are packed neatly into a durable polypropylene housing, reinforced with a metal anti-vibration structure for the best-possible resonance. The speaker weighs 14.2 kilograms and comes complete with an integrated rain cover.

Categories: Line arrays, Pro Audio, Speakers

Description

Description

Specifications

Weight and dimensions including packaging
Weight (incl. packaging)15.0 kg
Dimensions (incl. packaging)58.0 x 33.0 x 24.0 cm
Product specifications
dB Technologies DVA K5 line-array module
3-way speaker
frequency response: 70 Hz – 19 kHz
max. SPL: 129 dB
HF: 2x 1 in
HF voice coil: 1.4 in
MF: 1x 6.5 in
MF type: neodymium
MF voice coil: 2 in
LF: 1x 8 in
LF voice coil: 2.5 in
LF type: neodymium
dispersion: 100 x 15° per unit
amplifier:
technology: Digipro G3
class: D
RMS power: 500 W
peak power: 1000 W
cooling: convection
processor:
controller: DSP 56 bits
AD/DA converter: 24 bits / 48 KHz
limiter: Dual Active Multiband RMS, Peak, Thermal
crossover frequency MF-HF: 1800 Hz
slope MF – HF: 24 dB/Octave
crossover frequencies LF – MF: 340 Hz
slope LF – MF: 24 dB/Octave
connectors:
input: 1x XLR balanced
output: 1x XLR balanced
power: 1x PowerCON input, 1x PowerCON output
controls:
1x Input Sensitivity Rotary Switch
1x DSP Rotary Encoder (LF correction)
1x DSP Rotary Encoder (MF-HF correction)
dimensions: 58 x 24 x 32.7 cm
weight: 14.2 kg
