Digital development in the world of mixing in the studio and on stage has many advantages. These systems work with Cat5 Ethernet cables that transfer large amounts of information via a single cable over distances of up to 120 metres on length! This makes it possible to operate multiple audio channels at once and the ME-1 Personal Monitor provides each musician with their own personal mix.

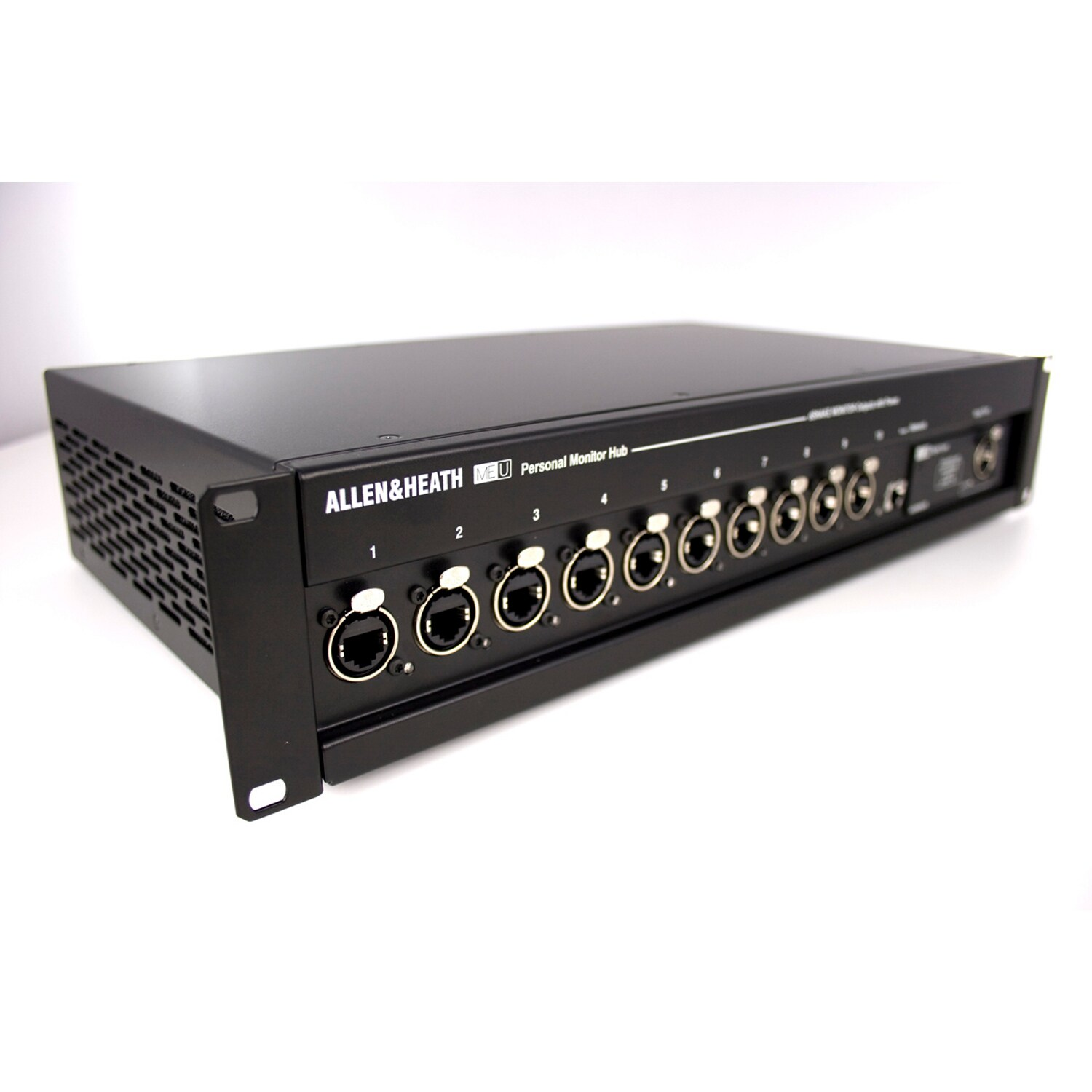

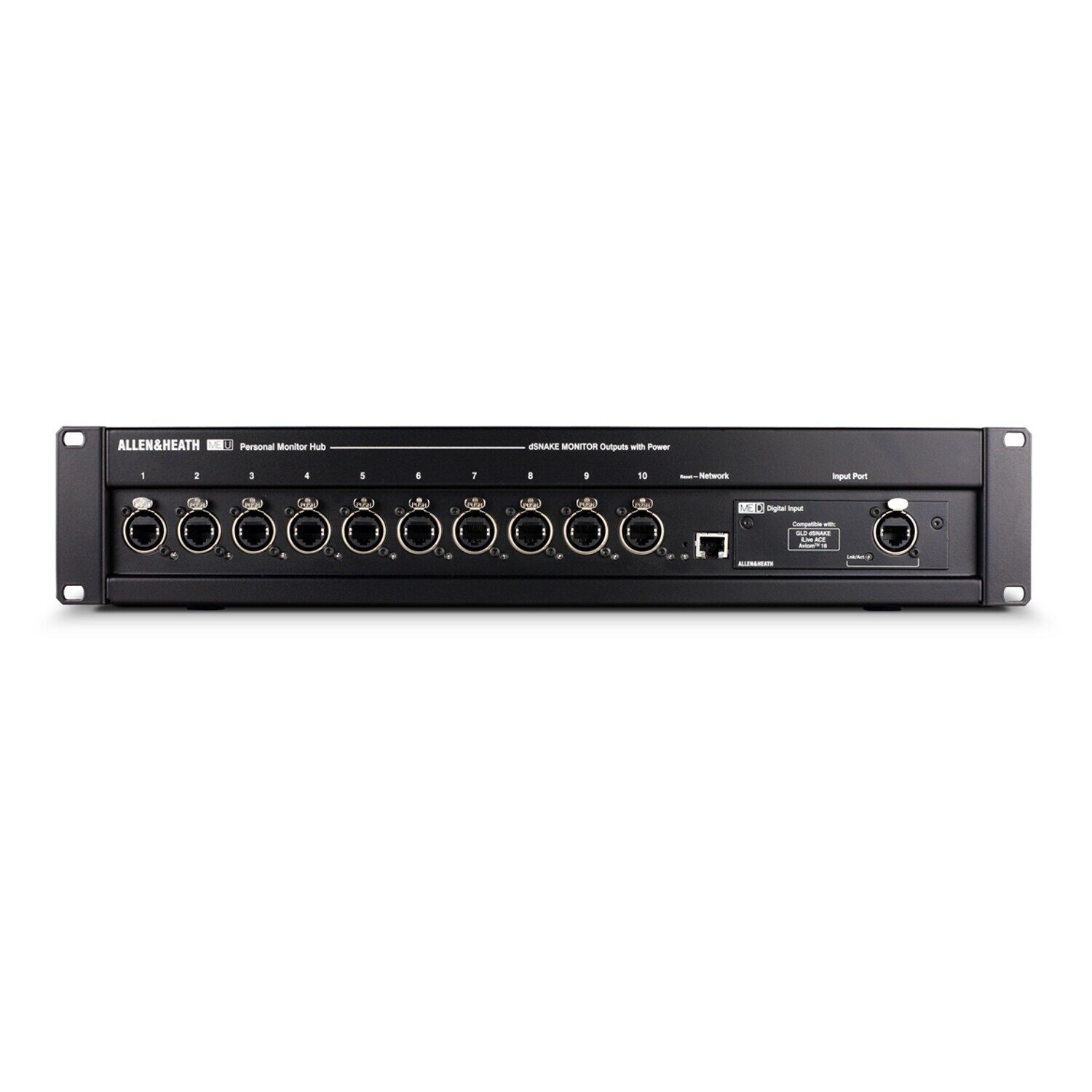

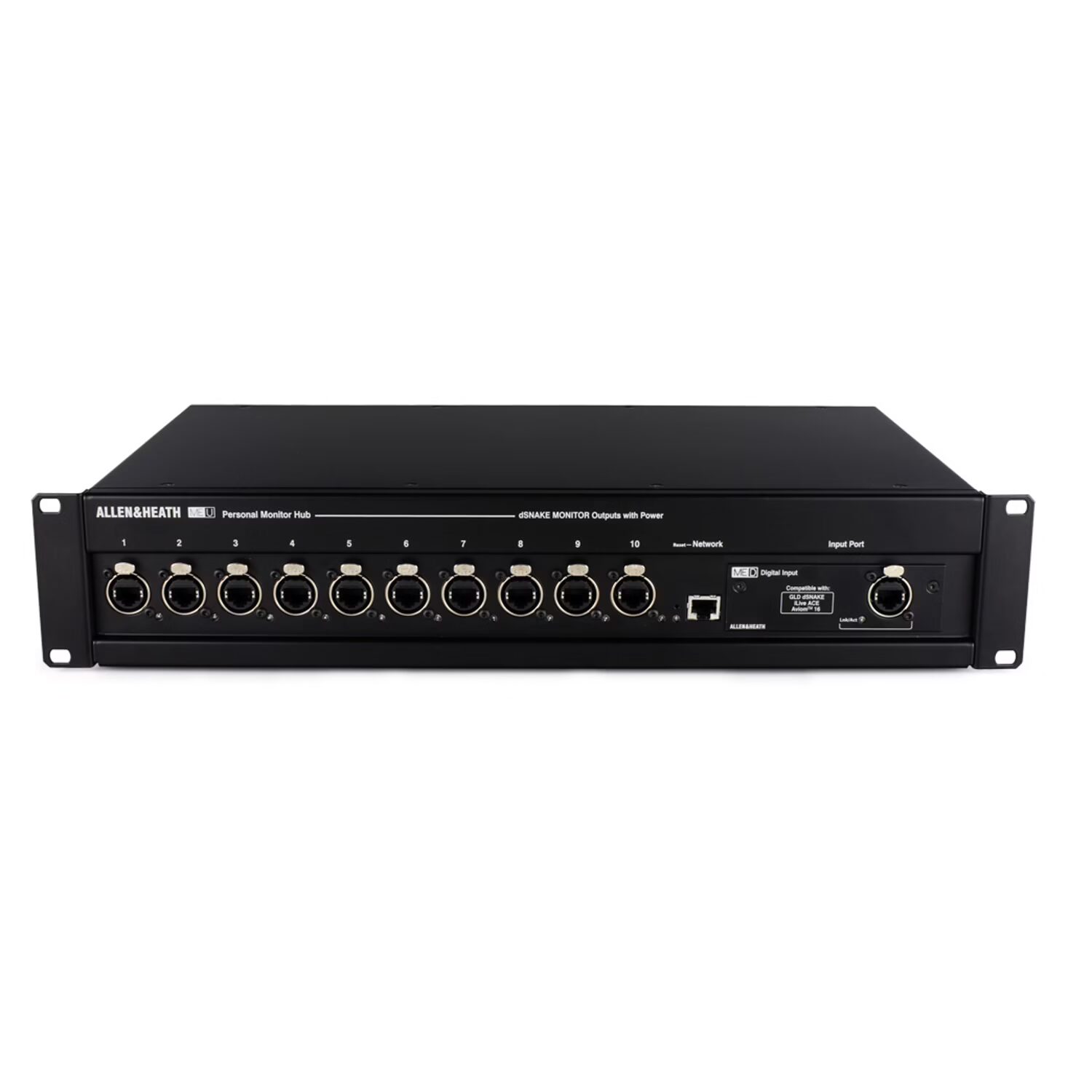

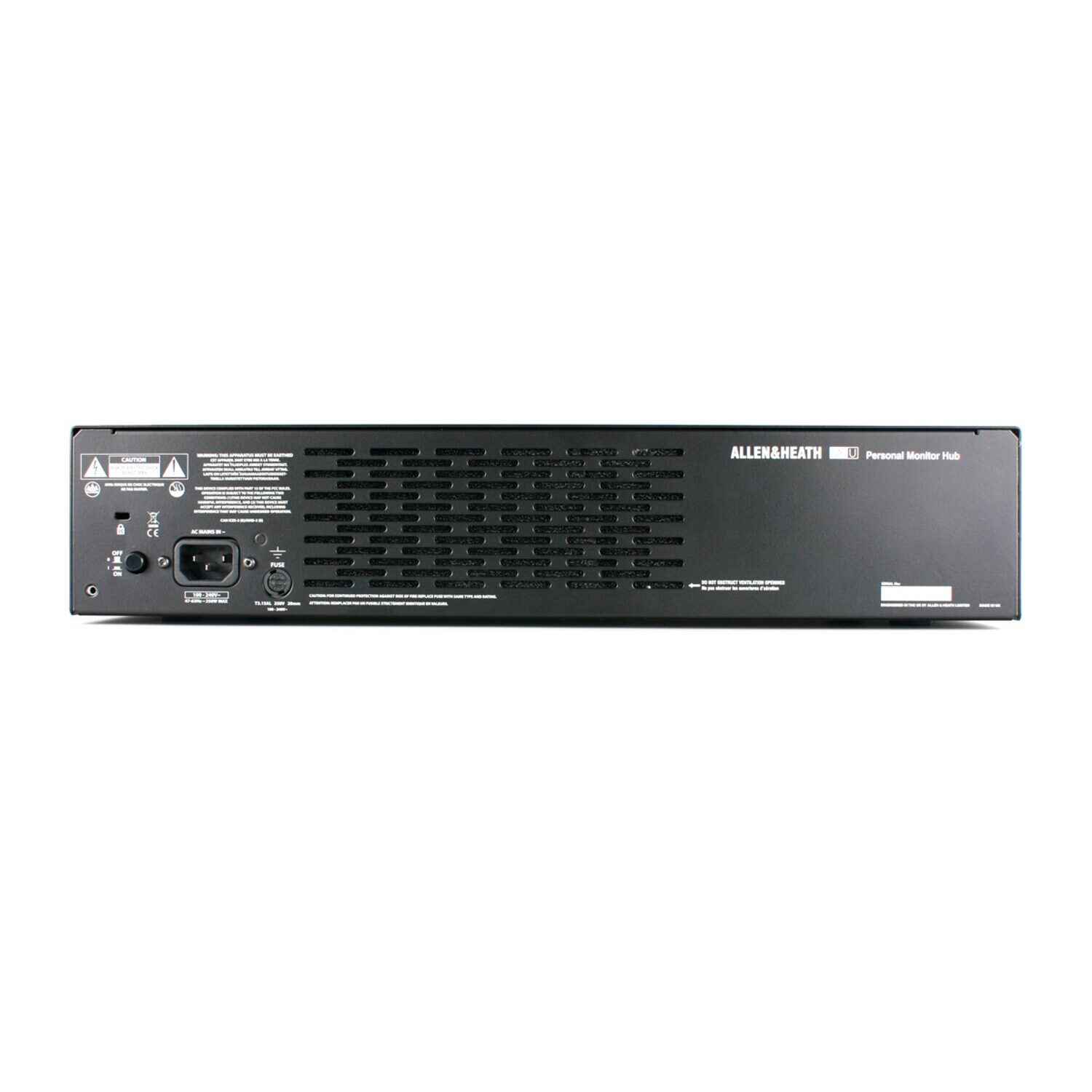

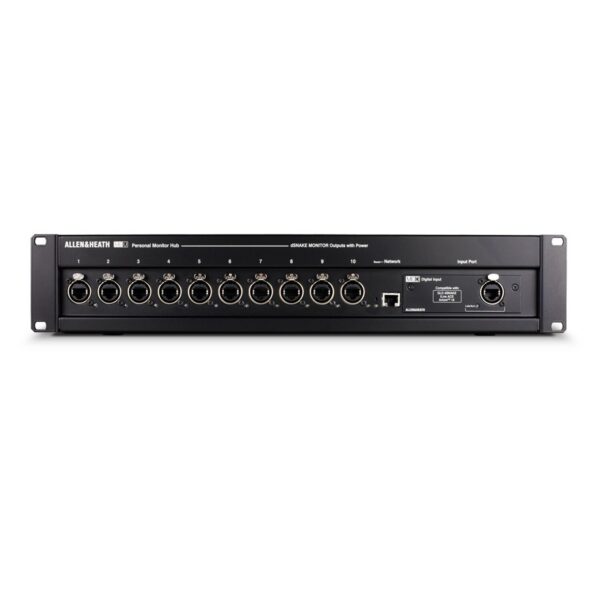

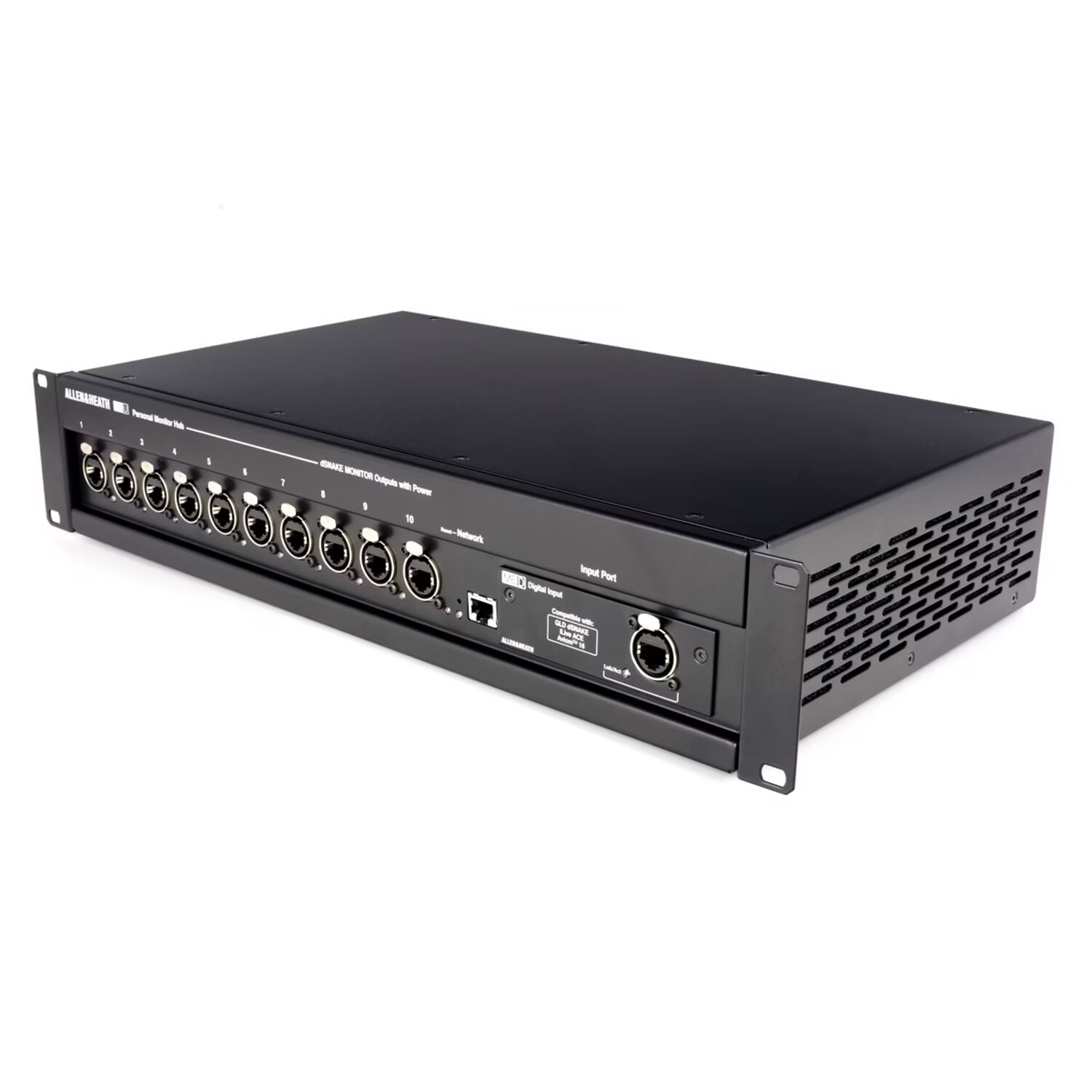

ME-U Monitor Hub

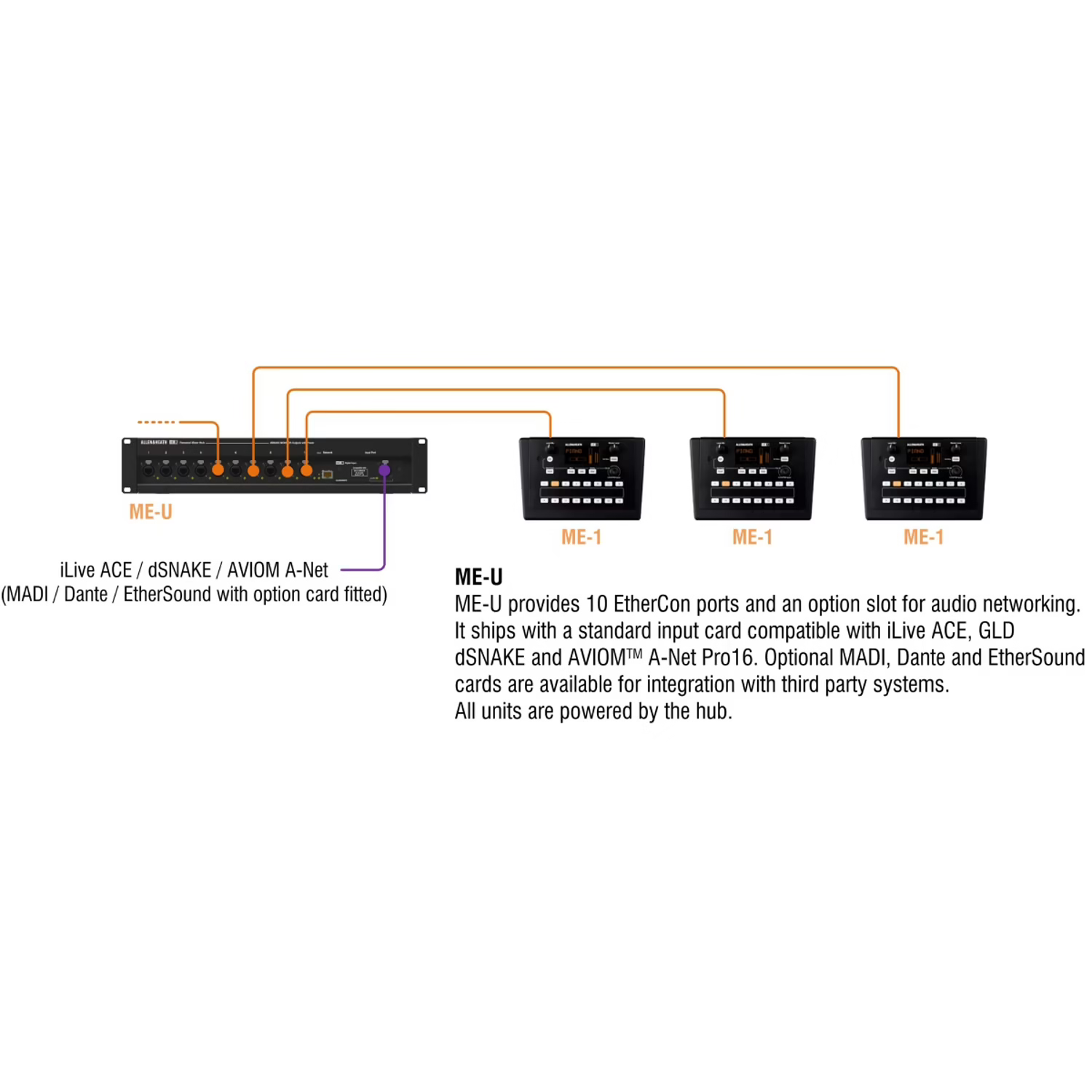

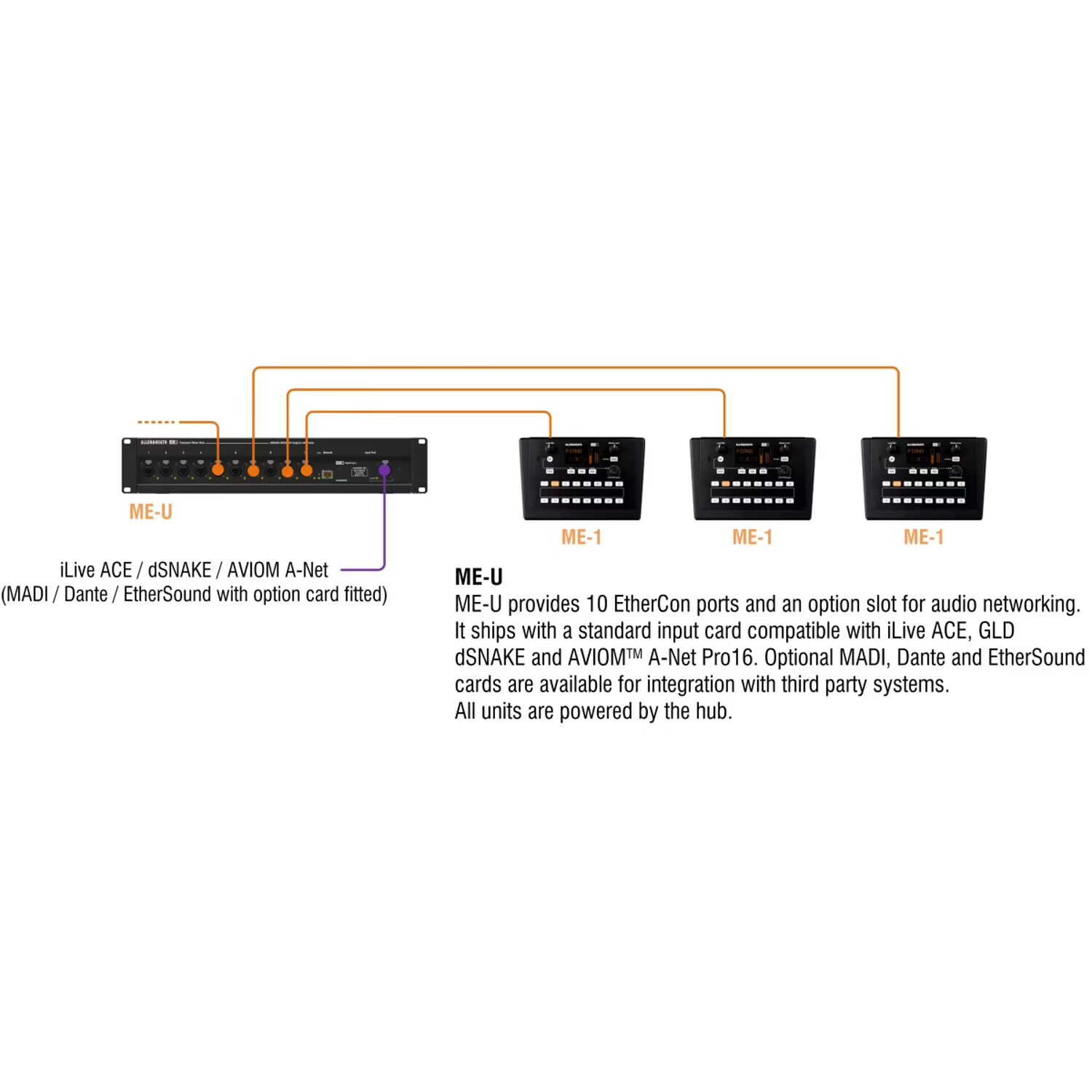

With the ME-U 10 port Monitor Hub by Allen & Heath, you can connect 10 ME-1 Personal Monitors in a parallel configuration. You’ve got one Ethercon input and ten outputs at your disposal, and the ME-U supplies each Personal Monitor with power and a maximum of 40 audio channels. The ME-U comes complete with a standard input card that’s suitable for the dSnake, iLive ACE or Aviom A-Net. It’s also available with a MADI, Dante or Ethersound card if you want it to communicate with equipment by brands other than Allen & Heath.
Specifications
Product features
19-inch rack size2U
Number of analogue input channels 1
Number of analogue output channels 9 – 16
Weight and dimensions including packaging
Weight (incl. packaging)3.0 kg
Product specifications
durable and built to last
2U rack height
10x ports with locking Ethercon connectors
daisy-chain possibility for outputs – up to 19x ME-1s with 2x hubs
each port supplies power + 40 audio signals to closed ME-1s
multi-purpose Network port
